Interruptor de botón pulsador SPST iluminado

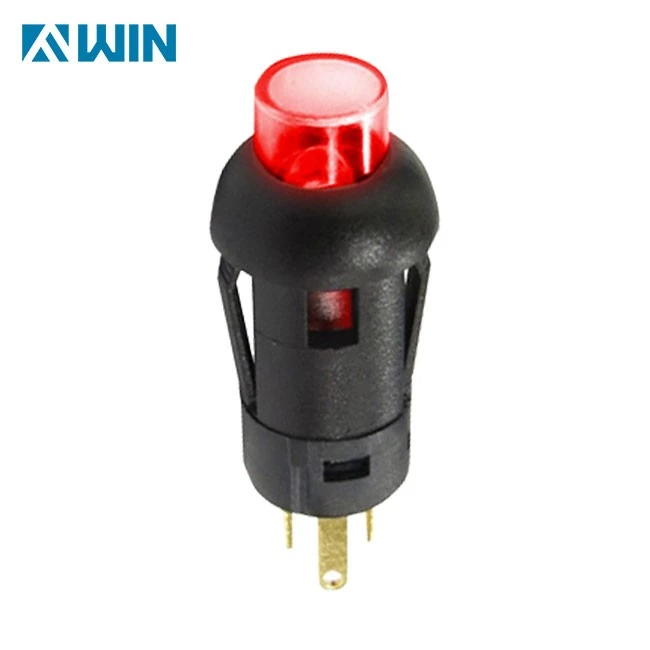

This is the circle diameter 9.6mm momentary illuminated push button switch,the top round button has size of diameter 5.6mm,the cut out size is 8mm.The case and housing is made from high-quality Nylon 6/6 and terminal is made from copper alloy with gold plated material. The total length of a push button switch is 18mm. It has illuminated water clear actuator.

Este interruptor de botón en miniatura con operación de interruptor momentáneo e interruptor de encendido y apagado de 1-polo para controlar una máquina o un proceso.

The PB8 Series illuminated pushbutton switch is available with bi-color LED choices of red, green, yellow, blue and white. Panel mount and small in size the PB8 series is SPST and momentary, with silver or gold contact option. This illuminated push button switches features 100,000 electrical life cycles and PC pin terminal options. The illuminated panel mount button switch is made with polycarbonate actuators, nylon housing, and alloy materials for the contacts and terminals.

Parámetro básico

Dimensión

 Atenciones del procedimiento de soldadura

1. The illuminated push switch is strictly prohibited wave welding and reflow soldering,please choose the manual welding procedure,and control the welding temperature of 350 degree ±5 degree for 3±5 seconds

2. After the product is soldered on the PCB board,it's prohibited to use any solvent to clean the PCB board and please avoid the influence of the inner product.

Las aplicaciones típicas para este interruptor de botón pulsador iluminado en miniatura serían:
• Test Equipment
• Telecommunications
• Networking
• Handheld Appliances

detalles del empaque

Stand Exported Packing for computer power switch:
inner bubble box--- inner box---carton (or by your request.)

envío

Número de cuenta de FedEx/UPS/TNT/DHL para el envío, si no, tenemos que cobrar el flete a su empresa.

Acerca de FVWIN

The FVWIN was founded in 2013. The main activities — is the supply of electronics switches and sockets as well as connectors, a variety of illuminated switches, power socket ,USB connector ,XLR connectors and the provision of services for the production of PCB and contract manufacturing of electronic products.
Our products covers a wide range of audio and video equipment,instruments,medical equipment,home appliance,security equipment,etc
